GPON interface（NNI）：1 x PON interface+WDM |
Optical port | GPON/EPON mode adaptive ITU-T G.984 GPON standards，Support for backward compatibility with IEEE 802.3ah EPON |
Optical connector | SC/APC |
Receiving Sensitivity | -28dBm；CATV Optical Receiver（1550nm）：-18dBm |
Overload optical power | -8 dBm；CATV Optical Receiver（1550nm）：+2dBm |
Transmitting Optical Power | 0~4dBm |
Transmit rate | GPON：2.488Gbps downstream; 1.244Gbps upstream EPON：1.25Gbps downstream；1.25Gbps upstream |
Wavelength | Receiving（DOWN）:1490nm；Transmitting（UP）:1310nm Third party wavelength（CATV Optical Receiver）:1550nm |
Authentication | GPON：SN /Password/LOID/LOID+LOID passowrd authentication EPON：MAC/LOID/LOID+LOID passowrd authentication |
WDM | 1490/1310nm+1550nm |
AGC range | +2~-7dBm/-4~-13dBm/-5~-14dBm |

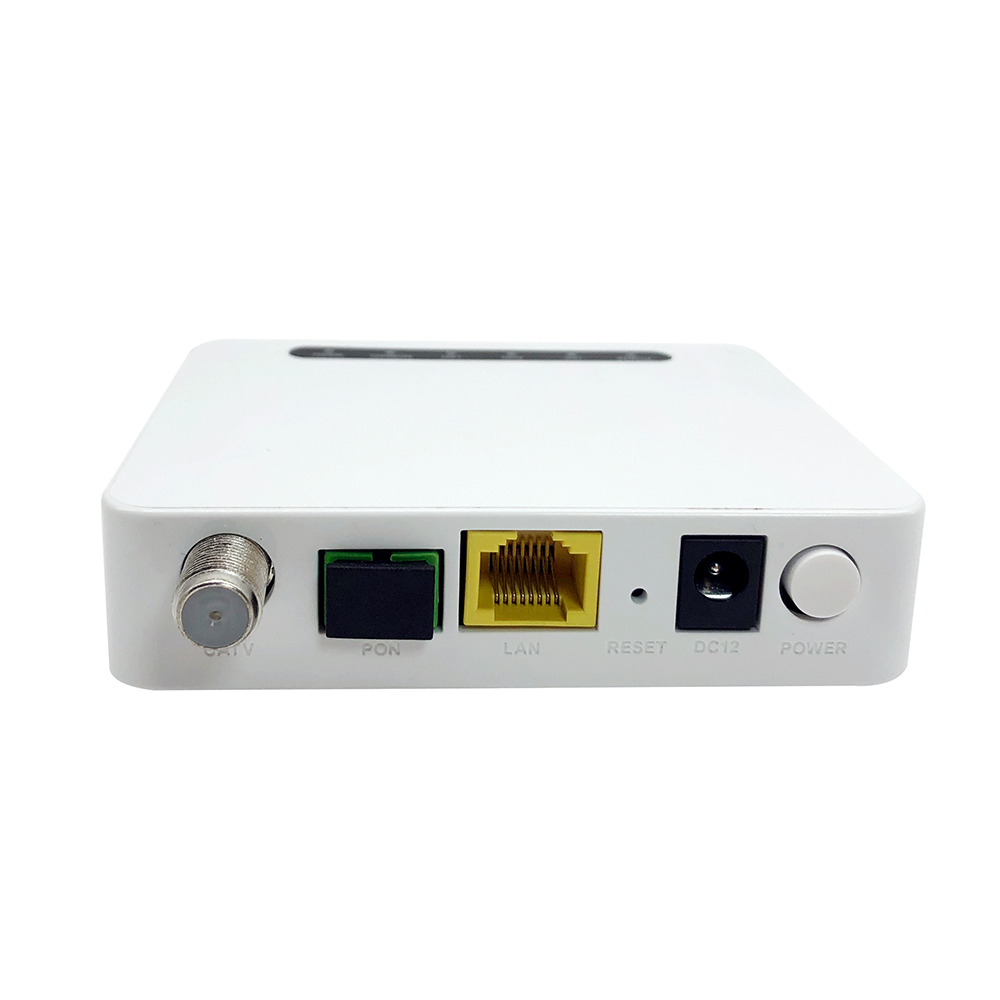

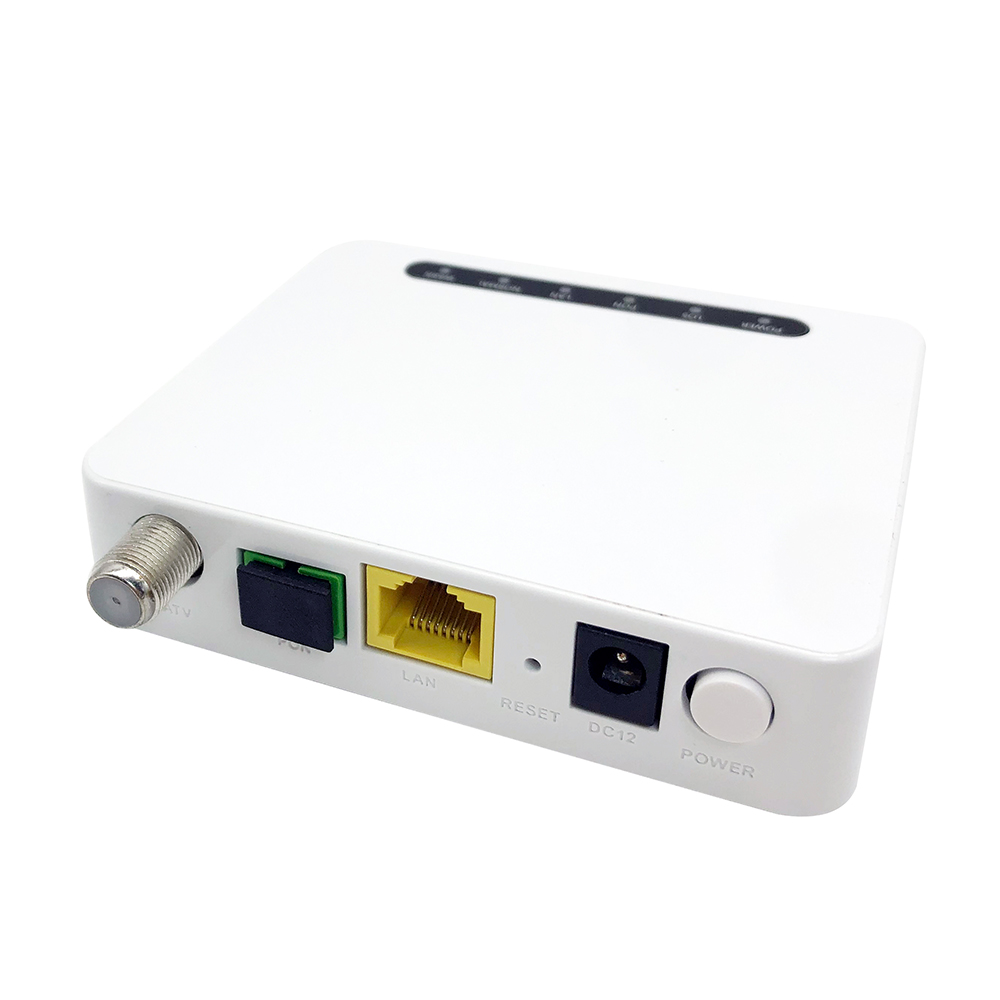

User Network Interface（UNI）：1GE+1CATV |
Ethernet Port | • Ethernet port-based VLAN tags and tag removal |
• VLAN transparent transmission |
• MAC address learning |
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
CATV Port | • CATV Interfce：RF output，-5 Male F-Type Connector |
• RF frequency：47MHz~1000MHz |
• RF output impedance：75Ω |
• RF output lever：≥ 82dBuV（-7dBm optical input） |
• Optical reflection loss: ≥45dB |
• MER: ≥32dB(-14dBm optical input), ＞35dB(-10dBm) |
Product Function |
Layer 3 Features | • PPPoE/Static IP/DHCP/Bridge |
• NAT， Firewall |
• Port forwarding |
• IPv4/IPv6 dual stack |
• Static/Default routes |
Multicast | • IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy |
Qos | • Support Flow & Storm Control , Loop Detection |
Manage | •OMCI/OAM/Web UI/Telnet |
•Manage the CATV RF Port in OLT（Disablel/Enable the CATV RF Port） |
Physical Performance |
Weight | About 200g |
Working temperature | -40°C ~ 60°C |
Working humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50 / 60 Hz |
System power supply | 12V DC, 1 A |
Power consumption | <3W |
n System Configuration | RTL9601D man chip+32MB RAM+8MB flash |
